16x8 1.2" LED Matrix+Backpack UltraBright Round YellowGreen LEDs

Parts › Displays & LEDs › LED Matrix & Segment

ADA2036 · Adafruit

16x8 1.2" LED Matrix+Backpack UltraBright Round YellowGreen LEDs photo

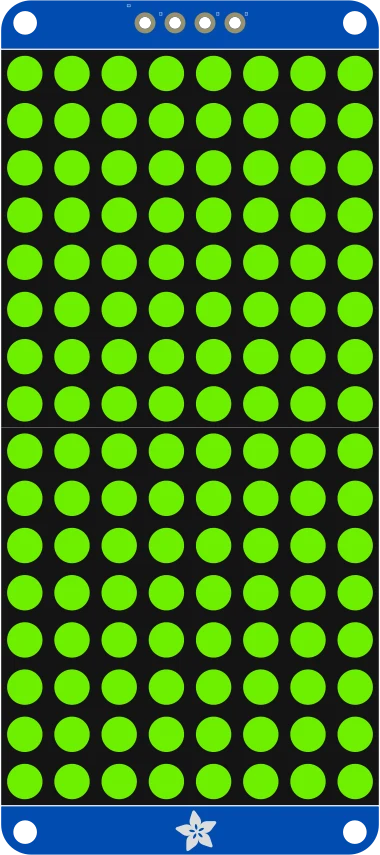

16x8 1.2" LED Matrix+Backpack UltraBright Round YellowGreen LEDs illustration

Adafruit product #2036.

Part numberADA2036
ManufacturerAdafruit
CategoryDisplays & LEDs › LED Matrix & Segment
Pins4

16x8 1.2" LED Matrix+Backpack UltraBright Round YellowGreen LEDs pinout

PinNameTypeDescription
1SCLbidirectional
2SDAbidirectional
3GNDground
4VDDpower

Schematic symbol and footprint

1234
Footprint: 16x8 LED Matrix Backpack (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.

Datasheet
