ADA6407 · Adafruit
Adafruit product #6407 — built on BMP581. Interfaces: I2C, SPI.
| Part number | ADA6407 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › Pressure |
| Pins | 8 |

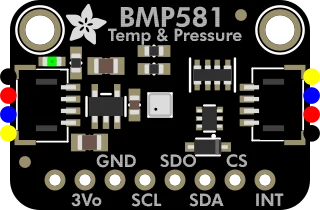

Adafruit BMP581 I2C or SPI Temperature and Pressure Sensor pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VCC | power | |
| 2 | 3.3V | power | |
| 3 | GND | ground | |
| 4 | SCK/SCL | bidirectional | |
| 5 | SDO/ADR | bidirectional | |
| 6 | SDI/SDA | bidirectional | |
| 7 | CS | bidirectional | |
| 8 | INT | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit BMP581 Temperature and Pressure Sensor (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
