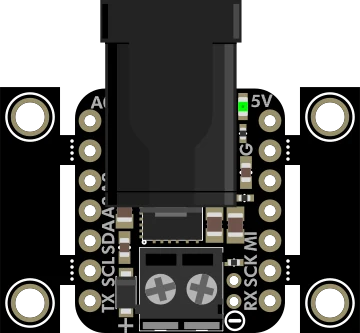

ADA5882 · AdafruitActive
Adafruit product #5882.
| Part number | ADA5882 |
|---|---|
| Manufacturer | Adafruit |
| Category | Power › Power Modules & Supplies |
| Pins | 21 |
Adafruit DC Power BFF Add-On for QT Py pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | A0 | bidirectional | |
| 2 | GND | ground | |
| 3 | +5V | power | |
| 4 | A1 | bidirectional | |
| 5 | GND | ground | |
| 6 | GND | ground | |
| 7 | A2 | bidirectional | |
| 8 | PWR | bidirectional | |
| 9 | 3.3V | power | |
| 10 | A3 | bidirectional | |
| 11 | MOSI | bidirectional | |
| 12 | SDA | bidirectional | |
| 13 | MISO | bidirectional | |
| 14 | SCL | bidirectional | |
| 15 | SCK | bidirectional | |
| 16 | N$2 | bidirectional | |
| 17 | GND | ground | |
| 18 | EN | bidirectional | |
| 19 | TX | bidirectional | |
| 20 | GND | ground | |
| 21 | RX | bidirectional |
Schematic symbol and footprint
Schematic symbol
Footprint: Adafruit DC Power BFF (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
