ADA2305 · AdafruitActive
Adafruit product #2305 — built on DRV2605L. Interfaces: I2C.
| Part number | ADA2305 |
|---|---|
| Manufacturer | Adafruit |
| Category | Motor Drivers & Controllers › Smart Motor Controllers |
| Pins | 7 |
Adafruit DRV2605L Haptic Motor Controller - STEMMA QT / Qwiic pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | OUT- | bidirectional | |
| 2 | OUT+ | bidirectional | |
| 3 | VCC | power | |
| 4 | GND | ground | |
| 5 | SCL | bidirectional | |
| 6 | SDA | bidirectional | |
| 7 | IN/TRIG | bidirectional |

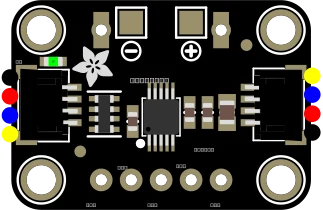

Schematic symbol and footprint
Footprint: Adafruit DRV2605L Haptic Motor Controller - STEMMA QT (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
