ADA5974 · AdafruitActive
Adafruit product #5974 — built on HX711.
| Part number | ADA5974 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › Force, Load & Weight |
| Pins | 12 |
| Resolution | 24 bit |

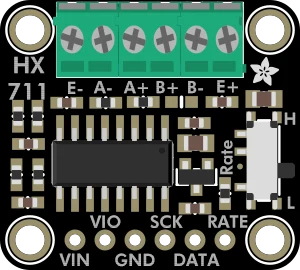

Adafruit HX711 24-bit ADC for Load Cells / Strain Gauges pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | A- | bidirectional | |
| 3 | A+ | bidirectional | |
| 4 | B+ | bidirectional | |
| 5 | B- | bidirectional | |
| 6 | VPP | bidirectional | |
| 7 | V+ | power | |
| 8 | VDDIO | bidirectional | |
| 9 | GND | ground | |
| 10 | SCLK | bidirectional | |
| 11 | DATAOUT | bidirectional | |
| 12 | RATE | bidirectional |
Schematic symbol and footprint
Schematic symbol
Footprint: Adafruit HX711 ADC Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
