ADA5832 · AdafruitActive
Adafruit product #5832 — built on INA228. Interfaces: I2C.
| Part number | ADA5832 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › Current & Voltage |
| Pins | 11 |
| Voltage (max) | 85 V |
| Resolution | 20 bit |

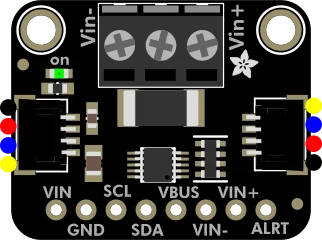

Adafruit INA228 - I2C 85V, 20-bit High or Low Side Power Monitor pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VIN- | bidirectional | |
| 2 | VBUS | power | |
| 3 | VIN+ | bidirectional | |
| 4 | VCC | power | |
| 5 | GND | ground | |
| 6 | SCL | bidirectional | |
| 7 | SDA | bidirectional | |
| 8 | VBUS | power | |
| 9 | VIN- | bidirectional | |
| 10 | VIN+ | bidirectional | |
| 11 | ALERT | bidirectional |
Schematic symbol and footprint
Schematic symbol
Footprint: Adafruit INA228 I2C Power Monitor (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
