ADA5800 · Adafruit
Adafruit product #5800 — built on ESP32-S3, RGB-666.
| Part number | ADA5800 |
|---|---|
| Manufacturer | Adafruit |
| Category | Development Boards › ESP32 Boards |
| Pins | 11 |

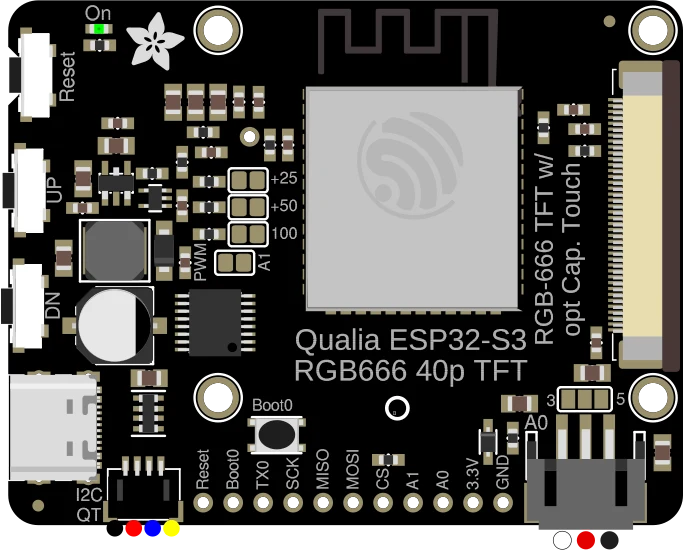

Adafruit Qualia ESP32-S3 for TTL RGB-666 Displays pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | !RESET | bidirectional | |
| 2 | BOOT0_B4 | bidirectional | |
| 3 | TXD0 | bidirectional | |
| 4 | SCK | bidirectional | |
| 5 | MISO | bidirectional | |
| 6 | MOSI | bidirectional | |
| 7 | CS | bidirectional | |
| 8 | A1 | bidirectional | |
| 9 | A0 | bidirectional | |
| 10 | 3.3V | power | |
| 11 | GND | ground |
Schematic symbol and footprint
Footprint: Adafruit Qualia S3 RGB666 (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Where to buy
| Supplier | Stock | Price | Status | |
|---|---|---|---|---|
| Mouser | 0 | — | View |
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
