ADA6100 · Adafruit
Adafruit product #6100.
| Part number | ADA6100 |
|---|---|
| Manufacturer | Adafruit |
| Category | Development Boards › ESP32 Boards |
| Pins | 15 |

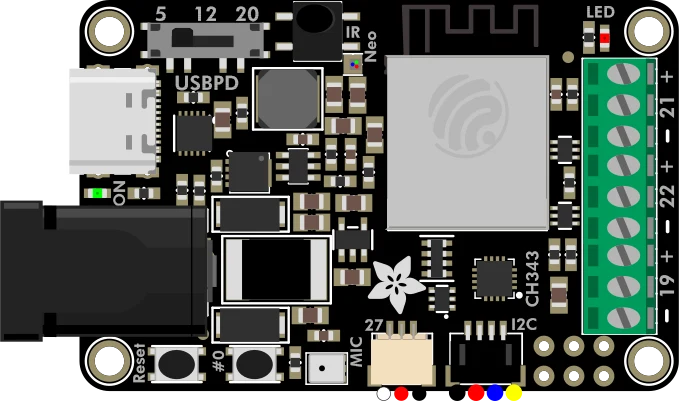

Adafruit Sparkle Motion - All-In-One WLED and xLights Board pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | +24V | bidirectional | |
| 2 | S1 | bidirectional | |
| 3 | GND | ground | |
| 4 | +24V | bidirectional | |
| 5 | S2 | bidirectional | |
| 6 | GND | ground | |
| 7 | +24V | bidirectional | |
| 8 | S3 | bidirectional | |
| 9 | GND | ground | |
| 10 | 3.3V | power | |
| 11 | IO10 | bidirectional | |
| 12 | S4 | bidirectional | |
| 13 | GND | ground | |
| 14 | IO9 | bidirectional | |
| 15 | IO18 | bidirectional |
