ADA3885 · AdafruitActive
Adafruit product #3885.
| Part number | ADA3885 |
|---|---|
| Manufacturer | Adafruit |
| Category | Audio › Speakers & Buzzers |
| Pins | 3 |

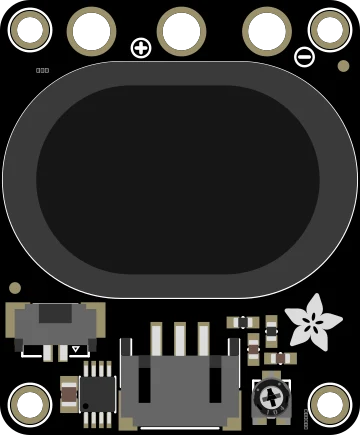

Adafruit STEMMA Speaker - Plug and Play Audio Amplifier pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | SIG | bidirectional | |
| 2 | VDD | power | |
| 3 | GND | ground |
Schematic symbol and footprint
Footprint: Adafruit STEMMA Speaker (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
