Adafruit TMF8806 Time of Flight Distance Sensor - 10mm to 5m

Parts › Sensors › Distance, ToF & Proximity

ADA6501 · Adafruit

Adafruit TMF8806 Time of Flight Distance Sensor - 10mm to 5m photo

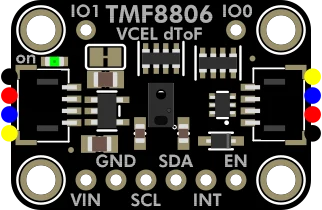

Adafruit TMF8806 Time of Flight Distance Sensor - 10mm to 5m illustration

Adafruit product #6501 — built on TMF8806.

Part numberADA6501
ManufacturerAdafruit
CategorySensors › Distance, ToF & Proximity
Pins8

Adafruit TMF8806 Time of Flight Distance Sensor - 10mm to 5m pinout

PinNameTypeDescription
1GPIO1bidirectional
2GPIO0bidirectional
3VCCpower
4GNDground
5SCLbidirectional
6SDAbidirectional
7INTbidirectional
8ENbidirectional

Schematic symbol and footprint

12345678
Footprint: Adafruit TMF8806 Time of Flight Sensor (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
