ADA1500 · Adafruit
Adafruit product #1500.
| Part number | ADA1500 |
|---|---|
| Manufacturer | Adafruit |
| Category | Development Boards › Arduino-compatible (AVR) |
| Pins | 10 |
| Voltage (max) | 3.3 V |

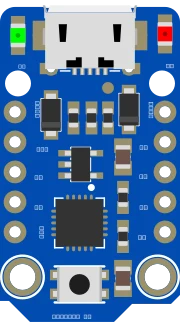

Adafruit Trinket - Mini Microcontroller - 3.3V Logic pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VBAT | power | |
| 2 | VBUS | power | |
| 3 | GND | ground | |
| 4 | #0 | bidirectional | |
| 5 | #4 | bidirectional | |
| 6 | #1 | bidirectional | |
| 7 | #3 | bidirectional | |
| 8 | #2 | bidirectional | |
| 9 | RESET | bidirectional | |
| 10 | +3V3 | power |
Schematic symbol and footprint
Footprint: Adafruit Trinket 3V (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
