ADA3000 · AdafruitActive
Adafruit product #3000.
| Part number | ADA3000 |
|---|---|
| Manufacturer | Adafruit |
| Category | Development Boards › Arduino-compatible (AVR) |
| Pins | 14 |

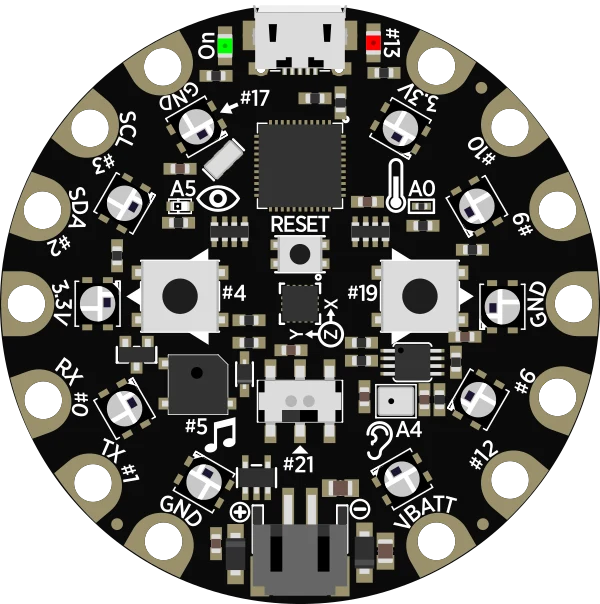

Circuit Playground Classic pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | 3.3V | power | |
| 3 | D3_SCL | bidirectional | |
| 4 | D10 | bidirectional | |
| 5 | D2_SDA | bidirectional | |
| 6 | D9 | bidirectional | |
| 7 | 3.3V | power | |
| 8 | GND | ground | |
| 9 | D0/RX | bidirectional | |
| 10 | D6 | bidirectional | |
| 11 | D1/TX | bidirectional | |
| 12 | D12 | bidirectional | |
| 13 | GND | ground | |
| 14 | VBAT | power |
Schematic symbol and footprint
Footprint: Adafruit Circuit Playground Dev Edition (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
