SEN0610 · DFRobot
24GHz millimeter-wave sensor detects presence up to 8m and motion up to 12m. It supports I2C/UART, with strong anti-interference capabilities. (DFRobot SEN0610)
| Part number | SEN0610 |
|---|---|
| Manufacturer | DFRobot |
| Category | Sensors › Motion & Presence |
| Pins | 4 |
| Frequency | 24 GHz |
Gravity: mmWave C4001 24GHz Human Presence Detection Sensor (12 Meters, I2C & UART) pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VCC | power | |
| 2 | GND | ground | |
| 3 | C (SCL/TX) | bidirectional | I2C SCL, or UART - see the module's pinout |
| 4 | D (SDA/RX) | bidirectional | I2C SDA, or UART - see the module's pinout |
Schematic symbol and footprint
Schematic symbol
Footprint: JST PH 2.0 mm 4-pin through-hole (Gravity PH2.0-4P) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Related parts
Grove - mini PIR motion sensor101020353

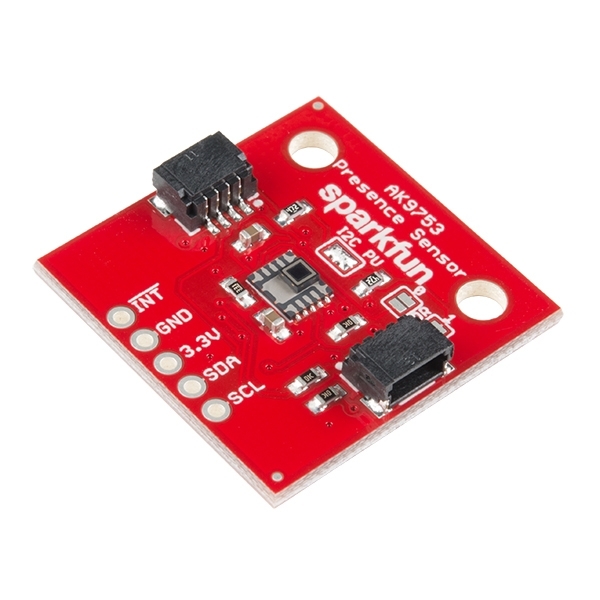

SparkFun Human Presence Sensor Breakout - AK9753 (Qwiic)SEN-14349

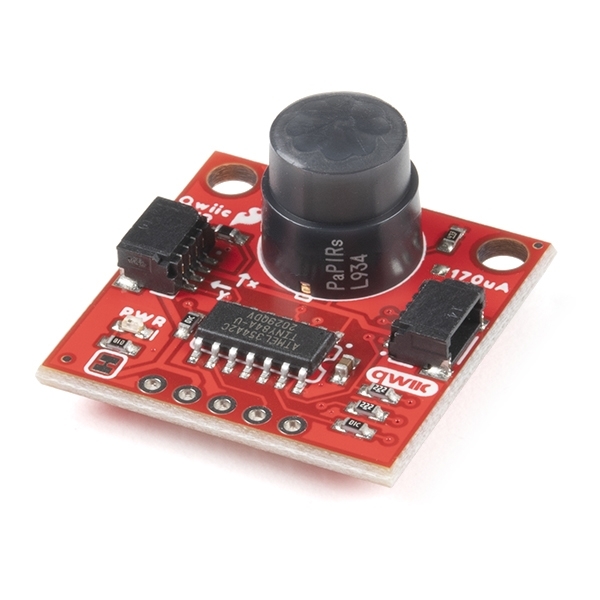

SparkFun Qwiic PIR - 170uA (EKMC4607112K)SEN-17374
