DEV-13614 · SparkFunActive
(SparkFun DEV-13614)
| Part number | DEV-13614 |
|---|---|
| Manufacturer | SparkFun |
| Category | Development Boards › Arduino-compatible (AVR) |
| Pins | 24 |

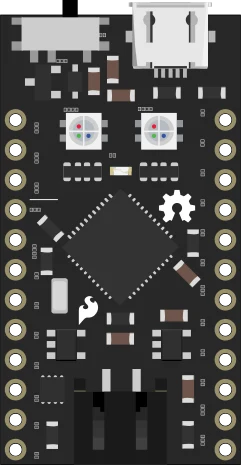

Qduino Mini - Arduino Dev Board pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | sck | bidirectional | |
| 2 | a5 | bidirectional | |
| 3 | mosi | bidirectional | |
| 4 | a4 | bidirectional | |
| 5 | miso | bidirectional | |
| 6 | a3 | bidirectional | |
| 7 | rst | bidirectional | |
| 8 | a2 | bidirectional | |
| 9 | vbus | power | |
| 10 | a1 | bidirectional | |
| 11 | lipo | bidirectional | |
| 12 | a0 | bidirectional | |
| 13 | d5 | bidirectional | |
| 14 | d12 | bidirectional | |
| 15 | d4 | bidirectional | |
| 16 | d9 | bidirectional | |
| 17 | scl | bidirectional | |
| 18 | d8 | bidirectional | |
| 19 | sda | bidirectional | |
| 20 | d6 | bidirectional | |
| 21 | tx | bidirectional | |
| 22 | gnd | ground | |
| 23 | rx | bidirectional | |
| 24 | vcc | power |
Schematic symbol and footprint
Footprint: Qduino Mini - Arduino Dev Board (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
