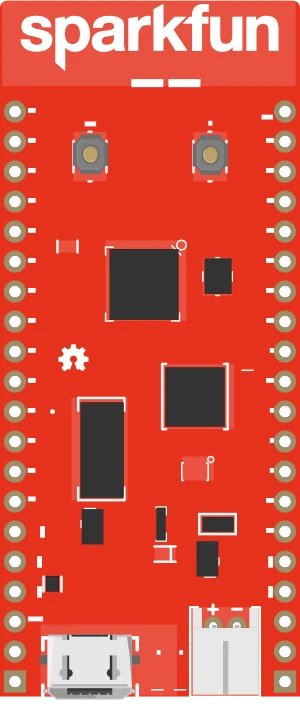

Name: SparkFun ESP32 Thing
Brand: SparkFun

Parts › Development Boards › ESP32 Boards

DEV-13907 · SparkFunActive

The SparkFun ESP32 Thing is a comprehensive development platform for Espressif’s ESP32, their super-charged version of the popular ESP8266. (SparkFun DEV-13907)

Part number	DEV-13907
Manufacturer	SparkFun
Category	Development Boards › ESP32 Boards
Pins	42
Frequency	2.4 GHz

SparkFun ESP32 Thing pinout

Pin	Name	Type
1	36	bidirectional
2	GND	ground
3	37	bidirectional
4	21	bidirectional
5	38	bidirectional
6	U0TXD	bidirectional
7	39	bidirectional
8	U0RXD	bidirectional
9	32K_XP	bidirectional
10	22	bidirectional
11	32K_XN	bidirectional
12	19	bidirectional
13	34	bidirectional
14	23	bidirectional
15	35	bidirectional
16	18	bidirectional
17	25	bidirectional
18	5	bidirectional
19	26	bidirectional
20	15	bidirectional
21	27	bidirectional
22	2	bidirectional
23	14	bidirectional
24	0	bidirectional
25	12	bidirectional
26	4	bidirectional
27	13	bidirectional
28	17	bidirectional
29	CHIP_PU	bidirectional
30	16	bidirectional
31	3.3V	power
32	3.3V	power
33	GND	ground
34	GND	ground
35	V_BATT	bidirectional
36	V_BATT	bidirectional
37	GND	ground
38	V_BATT	bidirectional
39	VUSB-RAW	bidirectional
40	VUSB-RAW	bidirectional
41	GND	ground
42	GND	ground
