SparkFun Micro Proximity Sensor - 20cm, VCNL4040 (Qwiic)

Parts › Sensors › Distance, ToF & Proximity

SEN-30161 · SparkFun

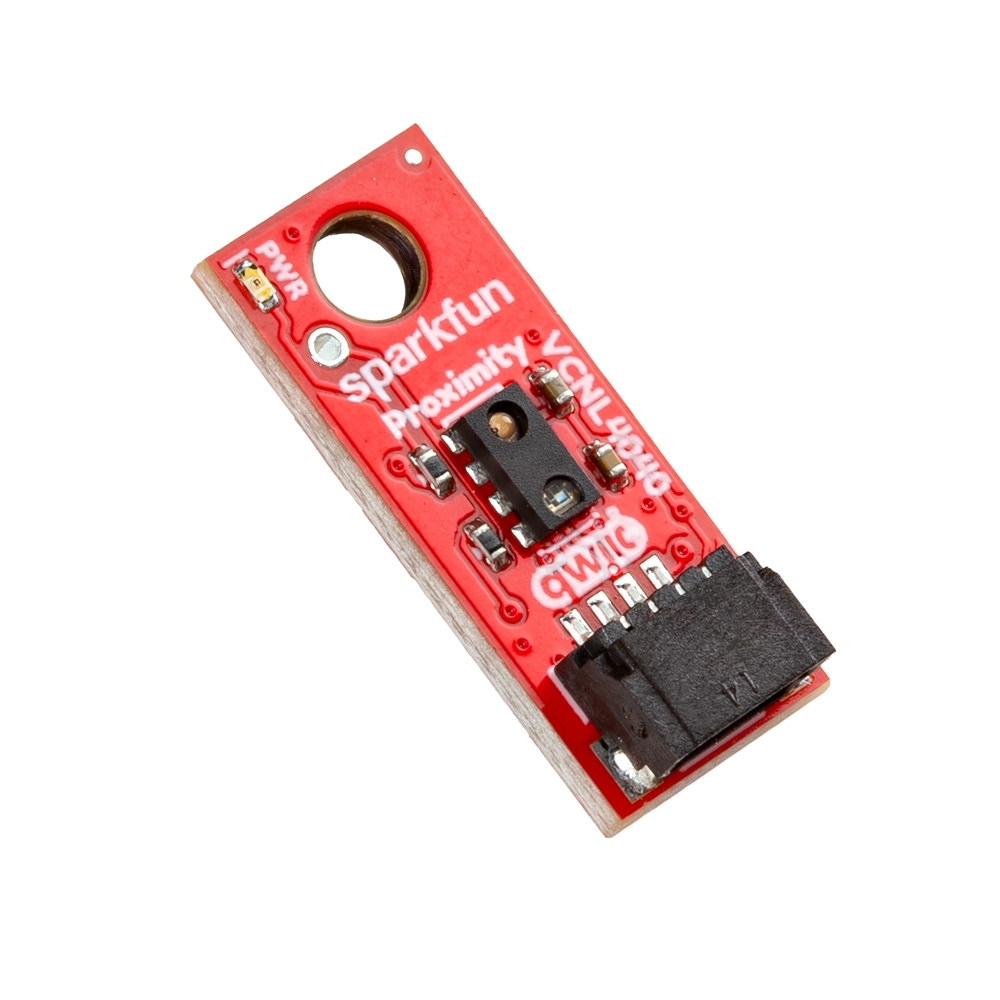

SparkFun Micro Proximity Sensor - 20cm, VCNL4040 (Qwiic) photo

The SparkFun Micro Proximity Sensor packs the VCNL4040's reliable, no-dead-zone presence detection and ambient light sensing into our smallest Qwiic form factor. (SparkFun SEN-30161)

Part numberSEN-30161
ManufacturerSparkFun
CategorySensors › Distance, ToF & Proximity
Pins4

SparkFun Micro Proximity Sensor - 20cm, VCNL4040 (Qwiic) pinout

PinNameTypeDescription
1GNDground
23V3power
3SDAbidirectional
4SCLinput

Schematic symbol and footprint

3V32SCL4SDA3GND1
Schematic symbol
1234MPMP
Footprint: JST-SH 4-pin SMD right-angle (SM04B-SRSS-TB) - Qwiic / STEMMA QT — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
