DEV-22925 · SparkFunActive

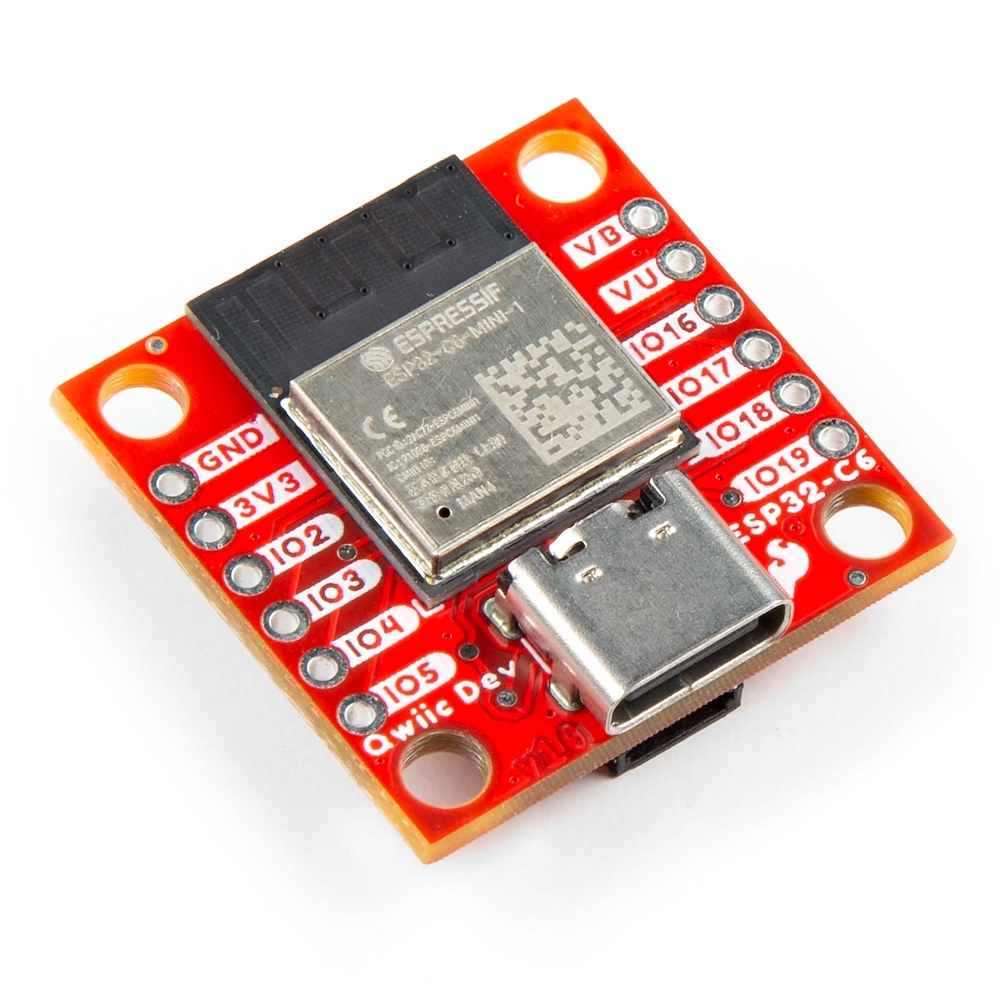

The SparkFun ESP32-C6 Pocket Dev Board is built around a RISC-V single-core processor with 4 MB flash memory in a 1"x1" Qwiic Standard Footprint! (SparkFun DEV-22925)
| Part number | DEV-22925 |
|---|---|
| Manufacturer | SparkFun |
| Category | Development Boards › ESP32 Boards |
| Pins | 16 |
| Frequency | 2.4 GHz |

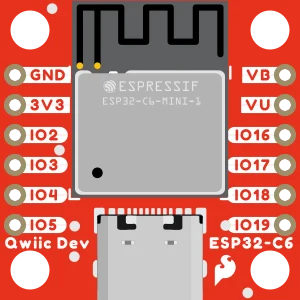

SparkFun Qwiic Pocket Development Board - ESP32-C6 pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | V_BATT | bidirectional | |
| 3 | 3.3V | power | |
| 4 | V_USB | bidirectional | |
| 5 | IO2 | bidirectional | |
| 6 | IO16/TX | bidirectional | |
| 7 | IO3 | bidirectional | |
| 8 | IO17/RX | bidirectional | |
| 9 | IO4 | bidirectional | |
| 10 | IO18 | bidirectional | |
| 11 | IO5 | bidirectional | |
| 12 | SHLD | bidirectional | |
| 13 | SHLD | bidirectional | |
| 14 | IO19 | bidirectional | |
| 15 | SHLD | bidirectional | |
| 16 | SHLD | bidirectional |
Schematic symbol and footprint
Footprint: SparkFun_Qwiic_Pocket_Development_Board_ESP32-C6 (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
