Name: SparkFun RedBoard - Programmed with Arduino
Brand: SparkFun

Parts › Development Boards › Arduino-compatible (AVR)

DEV-13975 · SparkFunActive

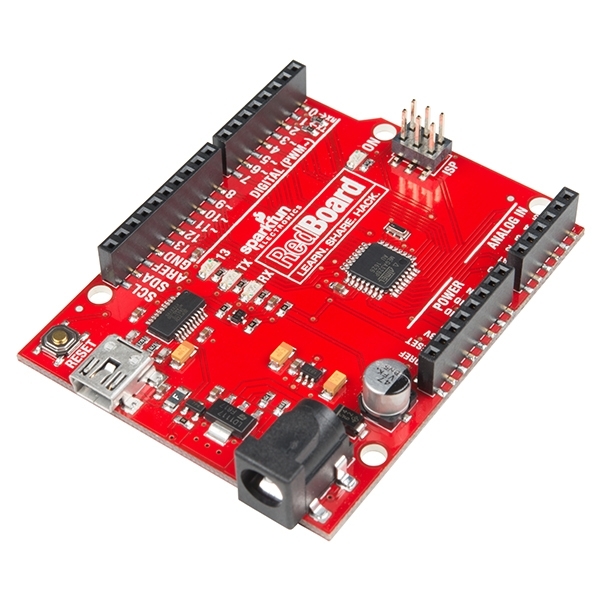

SparkFun RedBoard - Programmed with Arduino photo

The SparkFun RedBoard combines the simplicity of the UNO's Optiboot bootloader, the stability of the FTDI, and the shield compatibility of the Arduino R3. (SparkFun DEV-13975)

Part number	DEV-13975
Manufacturer	SparkFun
Category	Development Boards › Arduino-compatible (AVR)
Pins	32

SparkFun RedBoard - Programmed with Arduino pinout

Pin	Name	Type
1	NC	nc
2	IOREF	power
3	RESET	bidirectional
4	3V3	power
5	5V	power
6	GND	ground
7	GND	ground
8	VIN	power
9	A0	bidirectional
10	A1	bidirectional
11	A2	bidirectional
12	A3	bidirectional
13	A4	bidirectional
14	A5	bidirectional
15	D0/RX	bidirectional
16	D1/TX	bidirectional
17	D2	bidirectional
18	D3	bidirectional
19	D4	bidirectional
20	D5	bidirectional
21	D6	bidirectional
22	D7	bidirectional
23	D8	bidirectional
24	D9	bidirectional
25	D10	bidirectional
26	D11	bidirectional
27	D12	bidirectional
28	D13/SCK	bidirectional
29	GND	ground
30	AREF	bidirectional
31	SDA	bidirectional
32	SCL	bidirectional
