BOB-13830 · SparkFunActive
(SparkFun BOB-13830)
| Part number | BOB-13830 |
|---|---|
| Manufacturer | SparkFun |
| Category | Interface & Expansion › Programmers, Debuggers & USB-Serial |
| Pins | 32 |
SparkFun USB UART Serial Breakout - CY7C65213 pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | 5V | power | |
| 2 | 3.3V | power | |
| 3 | VCCIO | bidirectional | |
| 4 | GND | ground | |
| 5 | GPIO7 | bidirectional | |
| 6 | GPIO6 | bidirectional | |
| 7 | GPIO5 | bidirectional | |
| 8 | GPIO4 | bidirectional | |
| 9 | GPIO3 | bidirectional | |
| 10 | GPIO2 | bidirectional | |
| 11 | GPIO1 | bidirectional | |
| 12 | GPIO0 | bidirectional | |
| 13 | DTR | bidirectional | |
| 14 | RXD | bidirectional | |
| 15 | D- | bidirectional | |
| 16 | TXD | bidirectional | |
| 17 | D+ | bidirectional | |
| 18 | VCCIO | bidirectional | |
| 19 | CTS | bidirectional | |
| 20 | GND | ground | |
| 21 | 5V | power | |
| 22 | 3.3V | power | |
| 23 | VCCIO | bidirectional | |
| 24 | GND | ground | |
| 25 | TXD | bidirectional | |
| 26 | RXD | bidirectional | |
| 27 | DTR | bidirectional | |
| 28 | RTS | bidirectional | |
| 29 | RI | bidirectional | |
| 30 | DSR | bidirectional | |
| 31 | DCD | bidirectional | |
| 32 | CTS | bidirectional |
Schematic symbol and footprint

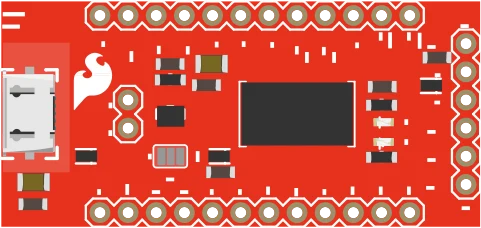

Footprint: SparkFun USB UART Breakout - CY7C65213 (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
