ADA1712 · Adafruit
Adafruit product #1712 — built on TPA2016. Interfaces: I2C.
| Part number | ADA1712 |
|---|---|
| Manufacturer | Adafruit |
| Category | Audio › Amplifiers & Audio Modules |
| Pins | 14 |
| Power | 2.8 W |

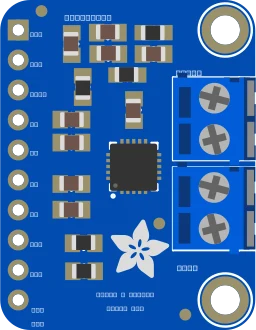

Stereo 2.8W Class D Audio Amplifier - I2C Control AGC - TPA2016 pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VDD | power | |
| 2 | GND | ground | |
| 3 | SHUTDOWN | bidirectional | |
| 4 | OUT_R_P | bidirectional | |
| 5 | IN_R_N | bidirectional | |
| 6 | IN_R_P | bidirectional | |
| 7 | OUT_R_N | bidirectional | |
| 8 | IN_L_P | bidirectional | |
| 9 | OUT_L_N | bidirectional | |
| 10 | IN_L_N | bidirectional | |
| 11 | OUT_L_P | bidirectional | |
| 12 | SCL | bidirectional | |
| 13 | SDA | bidirectional | |
| 14 | I2C_VCC | bidirectional |
Schematic symbol and footprint
Schematic symbol
Footprint: Adafruit Stereo 2.8W Class D Audio Amplifier - I2C Control AGC - TPA2016 (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
