ADA5899 · AdafruitActive
Adafruit product #5899 — built on ADG728, 1-TO-8. Interfaces: Analog.
| Part number | ADA5899 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › LED Matrix & Segment |
| Pins | 16 |

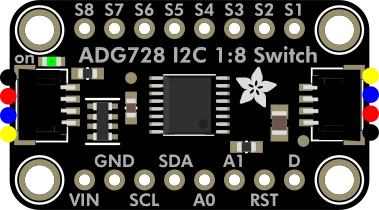

Adafruit ADG728 1-to-8 Analog Matrix Switch pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | S8 | bidirectional | |
| 2 | S7 | bidirectional | |
| 3 | S6 | bidirectional | |
| 4 | S5 | bidirectional | |
| 5 | S4 | bidirectional | |
| 6 | S3 | bidirectional | |
| 7 | S2 | bidirectional | |
| 8 | S1 | bidirectional | |
| 9 | VCC | power | |
| 10 | GND | ground | |
| 11 | SCL | bidirectional | |
| 12 | SDA | bidirectional | |
| 13 | A0 | bidirectional | |
| 14 | A1 | bidirectional | |
| 15 | !RESET | bidirectional | |
| 16 | D | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit ADG728 1-to-8 Analog Matrix Switch (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
