Name: Adafruit ADG729 Dual 1-to-4 Analog Matrix Switch
Brand: Adafruit

Parts › Displays & LEDs › LED Matrix & Segment

ADA5932 · AdafruitActive

Adafruit ADG729 Dual 1-to-4 Analog Matrix Switch photo

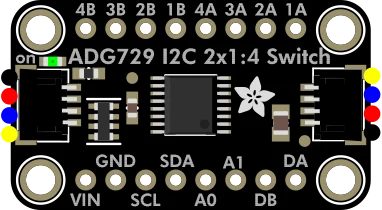

Adafruit ADG729 Dual 1-to-4 Analog Matrix Switch illustration

Adafruit product #5932 — built on ADG729, 1-TO-4. Interfaces: Analog.

Part number	ADA5932
Manufacturer	Adafruit
Category	Displays & LEDs › LED Matrix & Segment
Pins	16

Adafruit ADG729 Dual 1-to-4 Analog Matrix Switch pinout

Pin	Name	Type
1	S4B	bidirectional
2	S3B	bidirectional
3	S2B	bidirectional
4	S1B	bidirectional
5	S4A	bidirectional
6	S3A	bidirectional
7	S2A	bidirectional
8	S1A	bidirectional
9	VCC	power
10	GND	ground
11	SCL	bidirectional
12	SDA	bidirectional
13	A0	bidirectional
14	A1	bidirectional
15	DB	bidirectional
16	DA	bidirectional

Schematic symbol and footprint

Footprint: Adafruit ADG729 Dual 1-to-4 Analog Switch (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
