ADA5836 · AdafruitActive
Adafruit product #5836 — built on ADS7830. Interfaces: I2C.
| Part number | ADA5836 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › ADC & DAC Modules |
| Pins | 16 |
| Resolution | 8 bit |
| Channels | 8 |

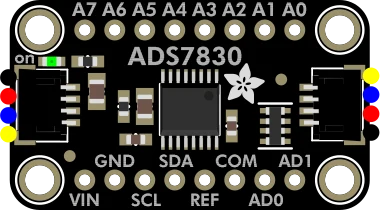

Adafruit ADS7830 8-Channel 8-Bit ADC with I2C pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | A7 | bidirectional | |
| 2 | A6 | bidirectional | |
| 3 | A5 | bidirectional | |
| 4 | A4 | bidirectional | |
| 5 | A3 | bidirectional | |
| 6 | A2 | bidirectional | |
| 7 | A1 | bidirectional | |
| 8 | A0 | bidirectional | |
| 9 | VCC | power | |
| 10 | GND | ground | |
| 11 | SCL | bidirectional | |
| 12 | SDA | bidirectional | |
| 13 | REF | bidirectional | |
| 14 | COM | bidirectional | |
| 15 | ADDR0 | bidirectional | |
| 16 | ADDR1 | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit ADS7830 8-Channel 8-Bit ADC (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
