ADA6223 · AdafruitActive
Adafruit product #6223 — built on DAC7578. Interfaces: I2C.
| Part number | ADA6223 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › ADC & DAC Modules |
| Pins | 16 |
| Resolution | 12 bit |

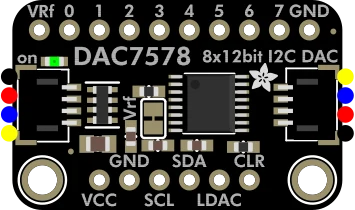

Adafruit DAC7578 Breakout - 8 x Channel 12-bit I2C DAC pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VREFIN | bidirectional | |
| 2 | VOUTA | bidirectional | |
| 3 | VOUTB | bidirectional | |
| 4 | VOUTC | bidirectional | |
| 5 | VOUTD | bidirectional | |
| 6 | VOUTE | bidirectional | |
| 7 | VOUTF | bidirectional | |
| 8 | VOUTG | bidirectional | |
| 9 | VOUTH | bidirectional | |
| 10 | GND | ground | |
| 11 | VCC | power | |
| 12 | GND | ground | |
| 13 | SCL | bidirectional | |
| 14 | SDA | bidirectional | |
| 15 | !LDAC | bidirectional | |
| 16 | !CLR | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit DAC7578 Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
