ADA5221 · AdafruitActive
Adafruit product #5221.
| Part number | ADA5221 |
|---|---|
| Manufacturer | Adafruit |
| Category | User Input & Controls › Rotary Encoders & Knobs |
| Pins | 9 |

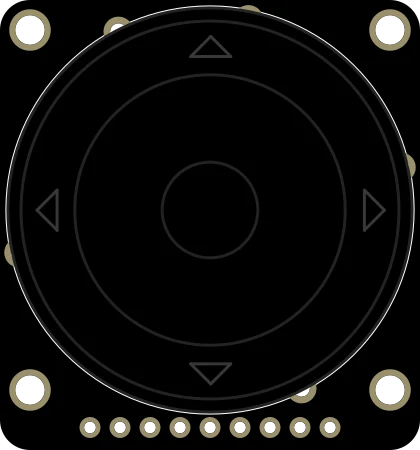

Adafruit ANO Rotary Navigation Encoder Breakout PCB pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | ENC_A | bidirectional | |
| 2 | ENC_B | bidirectional | |
| 3 | COMA | bidirectional | |
| 4 | SW1 | bidirectional | |
| 5 | SW2 | bidirectional | |
| 6 | SW3 | bidirectional | |
| 7 | SW4 | bidirectional | |
| 8 | SW5 | bidirectional | |
| 9 | COMB | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit ANO Rotary Navigation Encoder Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
