ADA5690 · Adafruit
Adafruit product #5690 — built on ATTINY1616. Interfaces: I2C.
| Part number | ADA5690 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › I/O Expanders & Multiplexers |
| Pins | 20 |

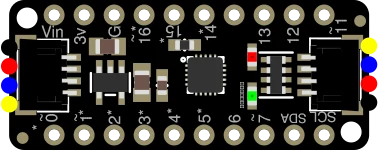

Adafruit ATtiny1616 Breakout with seesaw - STEMMA QT / Qwiic pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | 0 | bidirectional | |
| 2 | VIN | power | |
| 3 | 1 | bidirectional | |
| 4 | 3.3V | power | |
| 5 | 2 | bidirectional | |
| 6 | GND | ground | |
| 7 | 3 | bidirectional | |
| 8 | 16 | bidirectional | |
| 9 | 4 | bidirectional | |
| 10 | 15 | bidirectional | |
| 11 | 5 | bidirectional | |
| 12 | 14 | bidirectional | |
| 13 | RXD | bidirectional | |
| 14 | UPDI | bidirectional | |
| 15 | TXD | bidirectional | |
| 16 | 13 | bidirectional | |
| 17 | SDA | bidirectional | |
| 18 | 12 | bidirectional | |
| 19 | SCL | bidirectional | |
| 20 | 11 | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit ATtinyx16 Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
