ADA5626 · AdafruitActive
Adafruit product #5626 — built on PCA9548. Interfaces: I2C.
| Part number | ADA5626 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › I/O Expanders & Multiplexers |
| Pins | 5 |
| Channels | 8 |

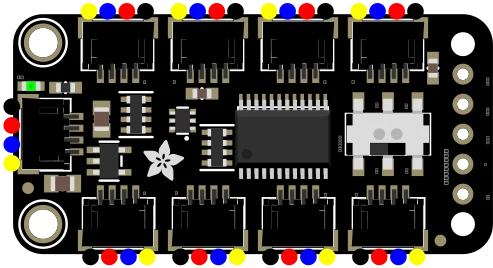

Adafruit PCA9548 8-Channel STEMMA QT / Qwiic I2C Multiplexer pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | RESET | bidirectional | |
| 2 | SDA | bidirectional | |
| 3 | SCL | bidirectional | |
| 4 | GND | ground | |
| 5 | VCC | power |
Schematic symbol and footprint
Footprint: Adafruit PCA9548 8-Channel STEMMA QT / Qwiic I2C Multiplexer (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
