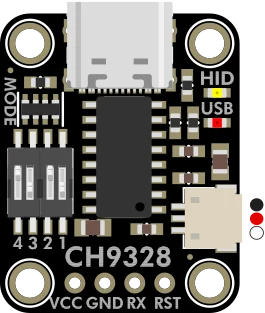

ADA5973 · AdafruitActive
Adafruit product #5973 — built on CH9328. Interfaces: UART.
| Part number | ADA5973 |
|---|---|
| Manufacturer | Adafruit |
| Category | User Input & Controls › Buttons & Keypads |
| Pins | 4 |
Adafruit CH9328 UART to HID Keyboard Breakout pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VCC | power | |
| 2 | GND | ground | |
| 3 | RX | bidirectional | |
| 4 | !RST | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit CH9328 UART to HID Keyboard Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
