ADA5296 · AdafruitActive
Adafruit product #5296. Interfaces: I2C.
| Part number | ADA5296 |
|---|---|
| Manufacturer | Adafruit |
| Category | User Input & Controls › Buttons & Keypads |
| Pins | 12 |

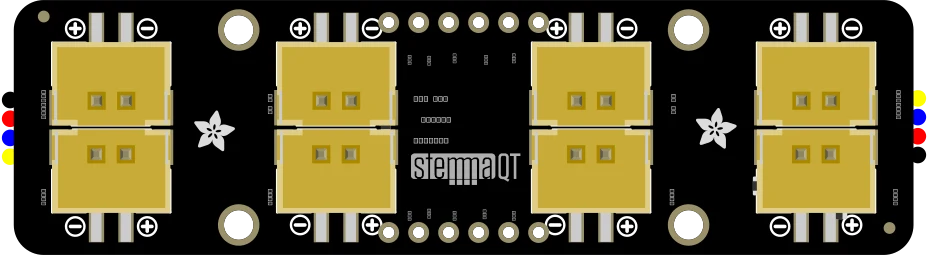

Adafruit LED Arcade Button 1x4 - STEMMA QT I2C Breakout pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VCC | power | |
| 2 | GND | ground | |
| 3 | SCL | bidirectional | |
| 4 | SDA | bidirectional | |
| 5 | INT | bidirectional | |
| 6 | UPDI | bidirectional | |
| 7 | VCC | power | |
| 8 | GND | ground | |
| 9 | SCL | bidirectional | |
| 10 | SDA | bidirectional | |
| 11 | INT | bidirectional | |
| 12 | UPDI | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit LED Arcade Button 1x4 STEMMA QT (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
