Adafruit CharliePlex LED Matrix Bonnet - 8x16 Green LEDs

Parts › Displays & LEDs › LED Matrix & Segment

ADA4120 · AdafruitActive

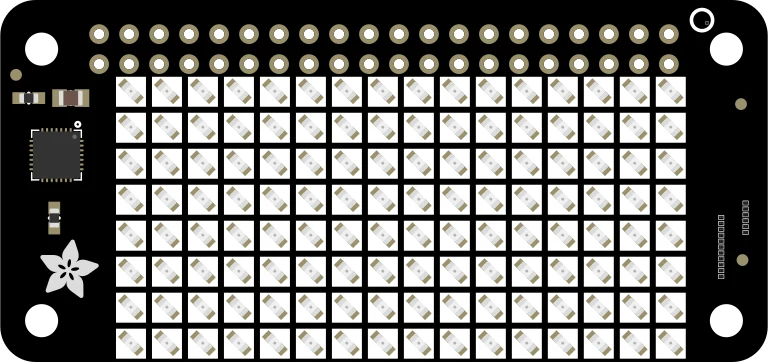

Adafruit CharliePlex LED Matrix Bonnet - 8x16 Green LEDs photo
Adafruit CharliePlex LED Matrix Bonnet - 8x16 Green LEDs illustration

Adafruit product #4120.

Part numberADA4120
ManufacturerAdafruit
CategoryDisplays & LEDs › LED Matrix & Segment
Pins14

Adafruit CharliePlex LED Matrix Bonnet - 8x16 Green LEDs pinout

PinNameTypeDescription
15.0Vbidirectional
25.0Vbidirectional
3GNDground
4GNDground
5GNDground
6GNDground
7GNDground
83.3Vpower
9SDAbidirectional
10SCLbidirectional
11GNDground
123.3Vpower
13GNDground
14GNDground

Schematic symbol and footprint

1234567891011121314
Footprint: CharliePlex Bonnet (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.

Datasheet

Where to buy

SupplierStockPriceStatus
Mouser0$13.27 (1+)View
DigiKey—$13.97 (1+)ActiveView

Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
