Name: Adafruit CRICKIT FeatherWing for any Feather
Brand: Adafruit

Parts › Motor Drivers & Controllers › Brushed DC Motor Drivers

ADA3343 · AdafruitObsolete

Adafruit CRICKIT FeatherWing for any Feather photo

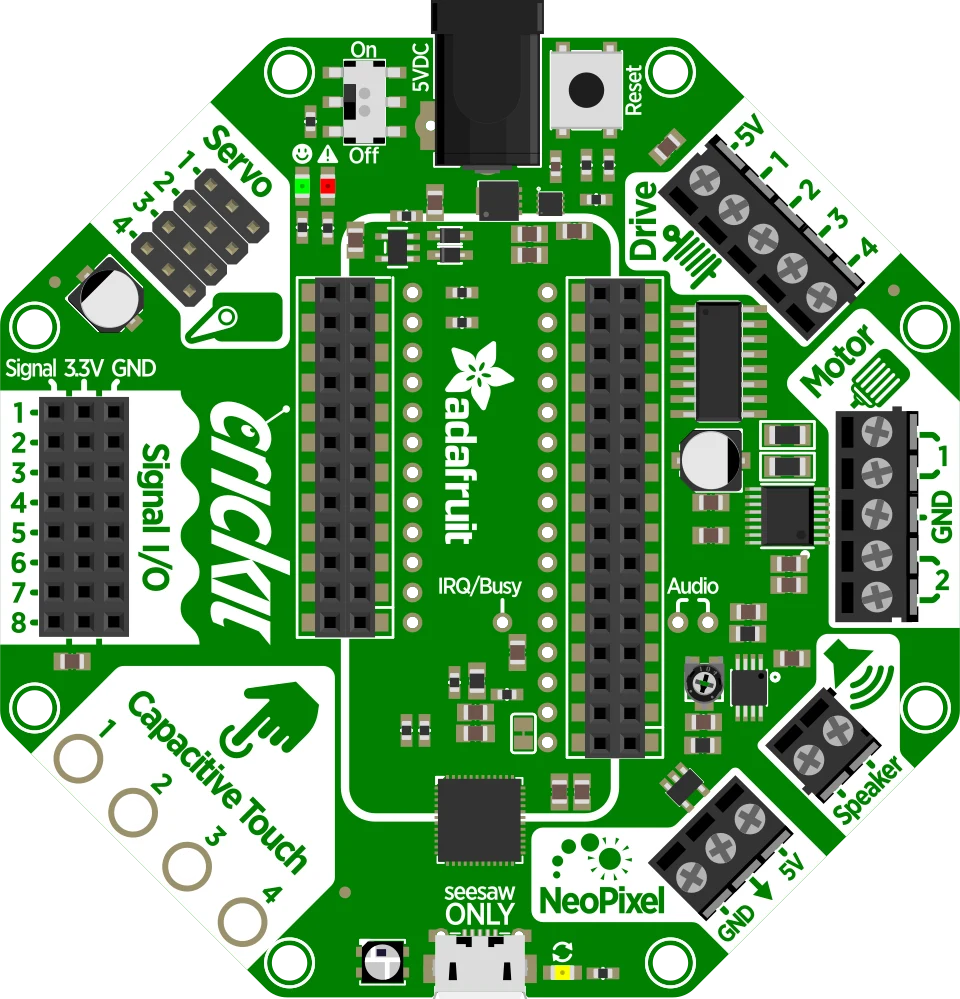

Adafruit CRICKIT FeatherWing for any Feather illustration

Adafruit product #3343.

Part number	ADA3343
Manufacturer	Adafruit
Category	Motor Drivers & Controllers › Brushed DC Motor Drivers
Pins	86

Adafruit CRICKIT FeatherWing for any Feather pinout

Pin	Name	Type
1	SERVO1	bidirectional
2	5.0V	bidirectional
3	SERVO2	bidirectional
4	5.0V	bidirectional
5	DRIVEOUT1	bidirectional
6	SERVO3	bidirectional
7	5.0V	bidirectional
8	GND	ground
9	DRIVEOUT2	bidirectional
10	SERVO4	bidirectional
11	5.0V	bidirectional
12	GND	ground
13	5.0V	bidirectional
14	GND	ground
15	DRIVEOUT3	bidirectional
16	GND	ground
17	SDA	bidirectional
18	G	bidirectional
19	DRIVEOUT4	bidirectional
20	SCL	bidirectional
21	TX	bidirectional
22	H	bidirectional
23	RX	bidirectional
24	I	bidirectional
25	MISO	bidirectional
26	ANALOG1	bidirectional
27	3.3V	power
28	GND	ground
29	J	bidirectional
30	MOSI	bidirectional
31	ANALOG2	bidirectional
32	3.3V	power
33	GND	ground
34	K	bidirectional
35	SCLK	bidirectional
36	MOTOR_1A_OUT	bidirectional
37	ANALOG3	bidirectional
38	3.3V	power
39	GND	ground
40	L	bidirectional
41	F	bidirectional
42	MOTOR_1B_OUT	bidirectional
43	ANALOG4	bidirectional
44	3.3V	power
45	GND	ground
46	M	bidirectional
47	E	bidirectional
48	GND	ground
49	ANALOG5	bidirectional
50	3.3V	power
51	GND	ground
52	N	bidirectional
53	D	bidirectional
54	ANALOG6	bidirectional
55	3.3V	power
56	GND	ground
57	USB	power
58	C	bidirectional
59	MOTOR_2A_OUT	bidirectional
60	ANALOG7	bidirectional
61	3.3V	power
62	GND	ground
63	ENABLE	bidirectional
64	B	bidirectional
65	MOTOR_2B_OUT	bidirectional
66	ANALOG8	bidirectional
67	3.3V	power
68	GND	ground
69	VBAT	power
70	IRQ	bidirectional
71	A	bidirectional
72	A	bidirectional
73	AUDIO	bidirectional
74	GND	ground
75	AREF	bidirectional
76	3.3V	power
77	SPKR-	bidirectional
78	!RESET	bidirectional
79	CAPTOUCH1	bidirectional
80	SPKR+	bidirectional
81	CAPTOUCH2	bidirectional
82	5.0V	bidirectional
83	NEOPIX_OUT	bidirectional
84	CAPTOUCH3	bidirectional
85	GND	ground
86	CAPTOUCH4	bidirectional

Schematic symbol and footprint

Footprint: Adafruit CRICKIT FeatherWing for any Feather (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
