Name: Adafruit CRICKIT for Circuit Playground Express
Brand: Adafruit

Parts › Development Boards › SAMD / SAM Boards

ADA3093 · AdafruitActive

Adafruit CRICKIT for Circuit Playground Express photo

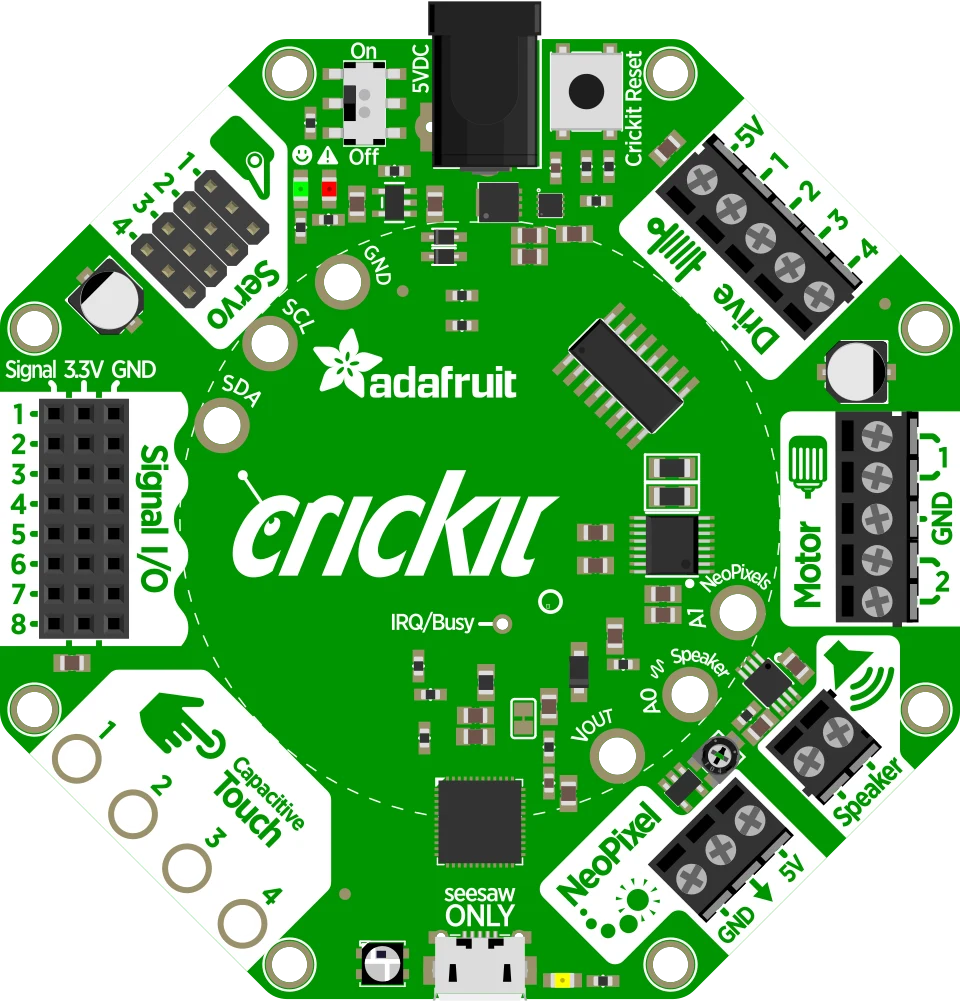

Adafruit CRICKIT for Circuit Playground Express illustration

Adafruit product #3093.

Part number	ADA3093
Manufacturer	Adafruit
Category	Development Boards › SAMD / SAM Boards
Pins	62

Adafruit CRICKIT for Circuit Playground Express pinout

Pin	Name	Type
1	SERVO1	bidirectional
2	5.0V	bidirectional
3	SERVO2	bidirectional
4	5.0V	bidirectional
5	DRIVEOUT1	bidirectional
6	SERVO3	bidirectional
7	5.0V	bidirectional
8	GND	ground
9	DRIVEOUT2	bidirectional
10	SERVO4	bidirectional
11	5.0V	bidirectional
12	GND	ground
13	5.0V	bidirectional
14	GND	ground
15	DRIVEOUT3	bidirectional
16	GND	ground
17	GND	ground
18	DRIVEOUT4	bidirectional
19	CPX_SCL	bidirectional
20	ANALOG1	bidirectional
21	3.3V	power
22	GND	ground
23	CPX_SDA	bidirectional
24	ANALOG2	bidirectional
25	3.3V	power
26	GND	ground
27	MOTOR_1A_OUT	bidirectional
28	ANALOG3	bidirectional
29	3.3V	power
30	GND	ground
31	MOTOR_1B_OUT	bidirectional
32	ANALOG4	bidirectional
33	3.3V	power
34	GND	ground
35	GND	ground
36	ANALOG5	bidirectional
37	3.3V	power
38	GND	ground
39	ANALOG6	bidirectional
40	3.3V	power
41	GND	ground
42	MOTOR_2A_OUT	bidirectional
43	ANALOG7	bidirectional
44	3.3V	power
45	GND	ground
46	MOTOR_2B_OUT	bidirectional
47	CPX_A1	bidirectional
48	ANALOG8	bidirectional
49	3.3V	power
50	GND	ground
51	IRQ	bidirectional
52	CPX_A0	bidirectional
53	SPKR-	bidirectional
54	CAPTOUCH1	bidirectional
55	CPX_VOUT	bidirectional
56	SPKR+	bidirectional
57	CAPTOUCH2	bidirectional
58	5.0V	bidirectional
59	NEOPIXELOUT	bidirectional
60	CAPTOUCH3	bidirectional
61	GND	ground
62	CAPTOUCH4	bidirectional

Schematic symbol and footprint

Footprint: Adafruit Crickit for Circuit Playground Express (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
