ADA3501 · AdafruitActive
Adafruit product #3501.
| Part number | ADA3501 |
|---|---|
| Manufacturer | Adafruit |
| Category | Development Boards › SAMD / SAM Boards |
| Pins | 6 |

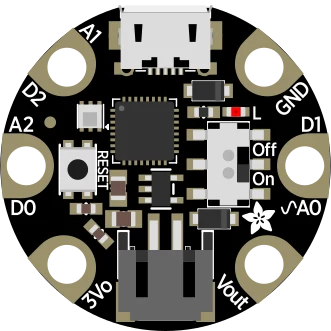

Adafruit GEMMA M0 - Miniature wearable electronic platform pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | D2_SCL_RX | bidirectional | |
| 2 | GND | ground | |
| 3 | D0_SDA_TX | bidirectional | |
| 4 | D1_A0 | bidirectional | |
| 5 | 3.3V | power | |
| 6 | VOUT | power |
Schematic symbol and footprint
Footprint: Adafruit Gemma M0 (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
