ADA6200 · AdafruitActive
Adafruit product #6200 — built on RP2350.
| Part number | ADA6200 |
|---|---|
| Manufacturer | Adafruit |
| Category | Development Boards › RP2040 / RP2350 Boards |
| Pins | 35 |

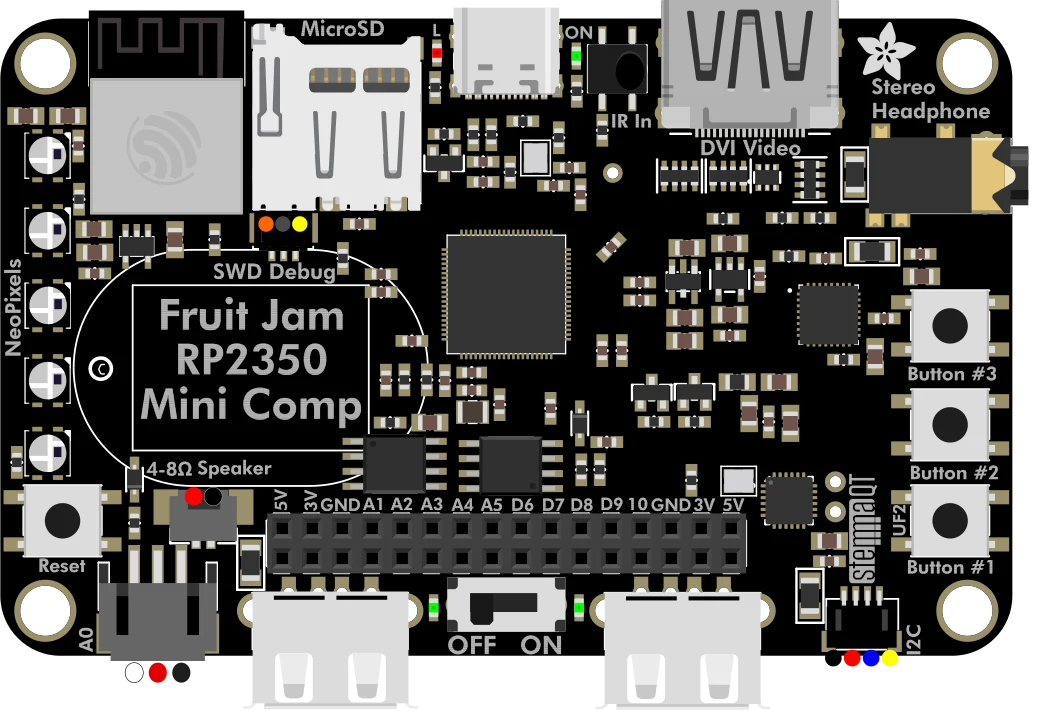

Adafruit Fruit Jam - Mini RP2350 Computer pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | I2S_ESP_IRQ | bidirectional | |
| 2 | USBH_D+ | bidirectional | |
| 3 | USBH_D- | bidirectional | |
| 4 | 5.0V | bidirectional | |
| 5 | 3.3V | power | |
| 6 | GND | ground | |
| 7 | A1 | bidirectional | |
| 8 | A2 | bidirectional | |
| 9 | A3 | bidirectional | |
| 10 | A4 | bidirectional | |
| 11 | A5 | bidirectional | |
| 12 | D6 | bidirectional | |
| 13 | D7 | bidirectional | |
| 14 | D8/TX1 | bidirectional | |
| 15 | D9/RX1 | bidirectional | |
| 16 | D10 | bidirectional | |
| 17 | GND | ground | |
| 18 | 3.3V | power | |
| 19 | 5.0V | bidirectional | |
| 20 | 5.0V | bidirectional | |
| 21 | 3.3V | power | |
| 22 | GND | ground | |
| 23 | !RESET | bidirectional | |
| 24 | PERIPH_RST | bidirectional | |
| 25 | SCK | bidirectional | |
| 26 | MISO | bidirectional | |
| 27 | MOSI | bidirectional | |
| 28 | D+3 | bidirectional | |
| 29 | D-3 | bidirectional | |
| 30 | USBBOOT/BUTTON1 | bidirectional | |
| 31 | SDA | bidirectional | |
| 32 | SCL | bidirectional | |
| 33 | GND | ground | |
| 34 | 3.3V | power | |
| 35 | 5.0V | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit Fruit Jam (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
