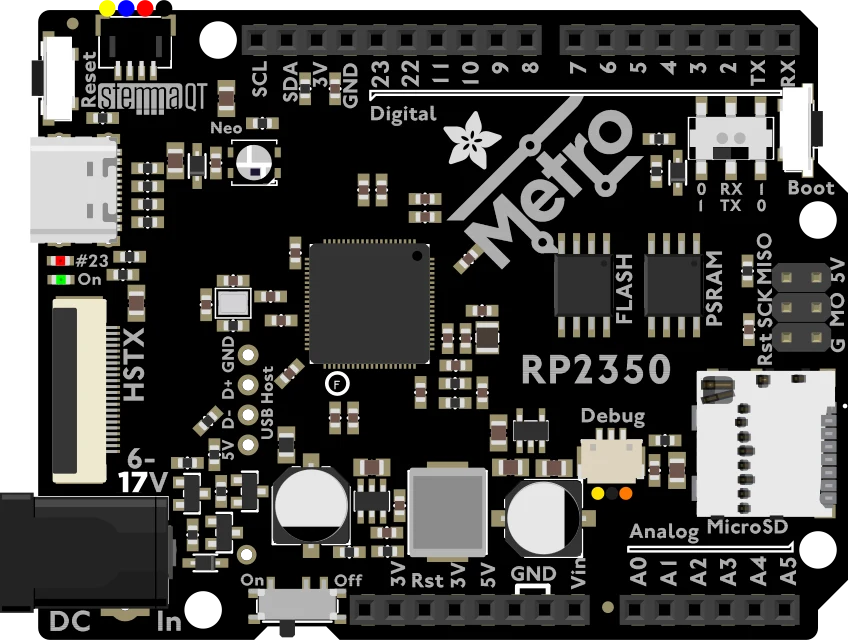

ADA6003 · AdafruitActive
Adafruit product #6003 — built on RP2350.
| Part number | ADA6003 |
|---|---|
| Manufacturer | Adafruit |
| Category | Development Boards › RP2040 / RP2350 Boards |
| Pins | 42 |
Adafruit Metro RP2350 pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | SCL | bidirectional | |
| 2 | SDA | bidirectional | |
| 3 | 3.3V | power | |
| 4 | GND | ground | |
| 5 | D23 | bidirectional | |
| 6 | D22 | bidirectional | |
| 7 | D11 | bidirectional | |
| 8 | D10 | bidirectional | |
| 9 | D9 | bidirectional | |
| 10 | D8 | bidirectional | |
| 11 | D7 | bidirectional | |
| 12 | D6 | bidirectional | |
| 13 | D5 | bidirectional | |
| 14 | D4 | bidirectional | |
| 15 | D3 | bidirectional | |
| 16 | D2 | bidirectional | |
| 17 | TXD | bidirectional | |
| 18 | RXD | bidirectional | |
| 19 | MISO | bidirectional | |
| 20 | +5V | power | |
| 21 | SCK | bidirectional | |
| 22 | MOSI | bidirectional | |
| 23 | !RESET | bidirectional | |
| 24 | GND | ground | |
| 25 | GND | ground | |
| 26 | USBH_D+ | bidirectional | |
| 27 | USBH_D- | bidirectional | |
| 28 | 1 | bidirectional | |
| 29 | PWR_SWITCH | bidirectional | |
| 30 | 3.3V | power | |
| 31 | !RESET | bidirectional | |
| 32 | 3.3V | power | |
| 33 | +5V | power | |
| 34 | GND | ground | |
| 35 | GND | ground | |
| 36 | VIN | power | |
| 37 | A0 | bidirectional | |
| 38 | A1 | bidirectional | |
| 39 | A2 | bidirectional | |
| 40 | A3 | bidirectional | |
| 41 | A4 | bidirectional | |
| 42 | A5 | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit Metro RP2350 (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
