Name: Adafruit I2C Quad Rotary Encoder Breakout with NeoPixel
Brand: Adafruit

Parts › Displays & LEDs › LED Drivers & Controllers

ADA5752 · AdafruitActive

Adafruit I2C Quad Rotary Encoder Breakout with NeoPixel photo

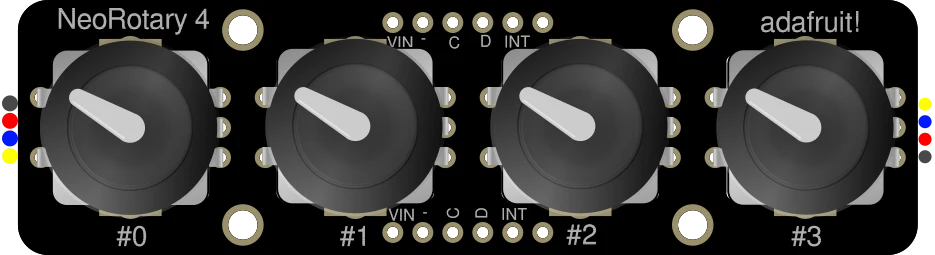

Adafruit I2C Quad Rotary Encoder Breakout with NeoPixel illustration

Adafruit product #5752. Interfaces: I2C.

Part number	ADA5752
Manufacturer	Adafruit
Category	Displays & LEDs › LED Drivers & Controllers
Pins	40

Adafruit I2C Quad Rotary Encoder Breakout with NeoPixel pinout

Pin	Name	Type
1	UPDI	bidirectional
2	INT	bidirectional
3	SDA	bidirectional
4	SCL	bidirectional
5	GND	ground
6	VCC	power
7	GND	ground
8	GND	ground
9	GND	ground
10	GND	ground
11	ROT3_B	bidirectional
12	GND	ground
13	ROT2_B	bidirectional
14	GND	ground
15	ROT1_B	bidirectional
16	GND	ground
17	ROT0_B	bidirectional
18	GND	ground
19	GND	ground
20	GND	ground
21	GND	ground
22	GND	ground
23	ROT3_A	bidirectional
24	ROT3_SW	bidirectional
25	ROT2_A	bidirectional
26	ROT2_SW	bidirectional
27	ROT1_A	bidirectional
28	ROT1_SW	bidirectional
29	ROT0_A	bidirectional
30	ROT0_SW	bidirectional
31	GND	ground
32	GND	ground
33	GND	ground
34	GND	ground
35	UPDI	bidirectional
36	INT	bidirectional
37	SDA	bidirectional
38	SCL	bidirectional
39	GND	ground
40	VCC	power

Schematic symbol and footprint

Footprint: Adafruit I2C Quad Rotary Encoder Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
