ADA3249 · Adafruit
Adafruit product #3249 — built on NEOPXL8.
| Part number | ADA3249 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › LED Drivers & Controllers |
| Pins | 88 |
Adafruit NeoPXL8 FeatherWing for Feather M0 - 8 x DMA NeoPixels! pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VBAT | power | |
| 2 | EN | bidirectional | |
| 3 | USB | power | |
| 4 | D13 | bidirectional | |
| 5 | D12 | bidirectional | |
| 6 | D11 | bidirectional | |
| 7 | D10 | bidirectional | |
| 8 | D9 | bidirectional | |
| 9 | D6 | bidirectional | |
| 10 | D5 | bidirectional | |
| 11 | SCL | bidirectional | |
| 12 | SDA | bidirectional | |
| 13 | VBAT | power | |
| 14 | EN | bidirectional | |
| 15 | USB | power | |
| 16 | D13 | bidirectional | |
| 17 | D12 | bidirectional | |
| 18 | D11 | bidirectional | |
| 19 | D10 | bidirectional | |
| 20 | D9 | bidirectional | |
| 21 | D6 | bidirectional | |
| 22 | D5 | bidirectional | |
| 23 | SCL | bidirectional | |
| 24 | SDA | bidirectional | |
| 25 | NEO4 | bidirectional | |
| 26 | GND | ground | |
| 27 | GND | ground | |
| 28 | NEO3 | bidirectional | |
| 29 | NEO5 | bidirectional | |
| 30 | GND | ground | |
| 31 | NEO7 | bidirectional | |
| 32 | NEO6 | bidirectional | |
| 33 | NEO5 | bidirectional | |
| 34 | NEO4 | bidirectional | |
| 35 | NEO3 | bidirectional | |
| 36 | NEO2 | bidirectional | |
| 37 | NEO1 | bidirectional | |
| 38 | NEO0 | bidirectional | |
| 39 | GND | ground | |
| 40 | NEO2 | bidirectional | |
| 41 | NEO6 | bidirectional | |
| 42 | GND | ground | |
| 43 | GND | ground | |
| 44 | GND | ground | |
| 45 | GND | ground | |
| 46 | GND | ground | |
| 47 | GND | ground | |
| 48 | GND | ground | |
| 49 | GND | ground | |
| 50 | GND | ground | |
| 51 | GND | ground | |
| 52 | NEO1 | bidirectional | |
| 53 | NEO7 | bidirectional | |
| 54 | GND | ground | |
| 55 | GND | ground | |
| 56 | NEO0 | bidirectional | |
| 57 | RESET | bidirectional | |
| 58 | 3.3V | power | |
| 59 | AREF | bidirectional | |
| 60 | GND | ground | |
| 61 | A0 | bidirectional | |
| 62 | A1 | bidirectional | |
| 63 | A2 | bidirectional | |
| 64 | A3 | bidirectional | |
| 65 | A4 | bidirectional | |
| 66 | A5 | bidirectional | |
| 67 | SCK | bidirectional | |
| 68 | MOSI | bidirectional | |
| 69 | MISO | bidirectional | |
| 70 | RX | bidirectional | |
| 71 | TX | bidirectional | |
| 72 | G | bidirectional | |
| 73 | RESET | bidirectional | |
| 74 | 3.3V | power | |
| 75 | AREF | bidirectional | |
| 76 | GND | ground | |
| 77 | A0 | bidirectional | |
| 78 | A1 | bidirectional | |
| 79 | A2 | bidirectional | |
| 80 | A3 | bidirectional | |
| 81 | A4 | bidirectional | |
| 82 | A5 | bidirectional | |
| 83 | SCK | bidirectional | |
| 84 | MOSI | bidirectional | |
| 85 | MISO | bidirectional | |
| 86 | RX | bidirectional | |
| 87 | TX | bidirectional | |
| 88 | G | bidirectional |
Schematic symbol and footprint

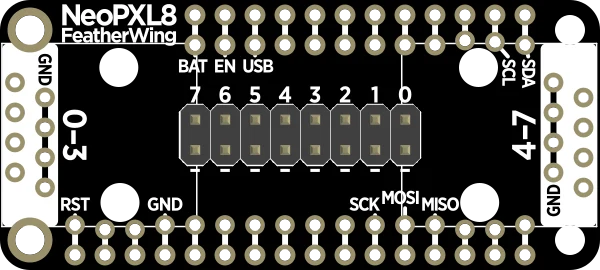

Footprint: Adafruit NeoPXL8 FeatherWing (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
