ADA5990 · Adafruit
Adafruit product #5990.
| Part number | ADA5990 |
|---|---|
| Manufacturer | Adafruit |
| Category | Communication & Wireless › Infrared |
| Pins | 4 |

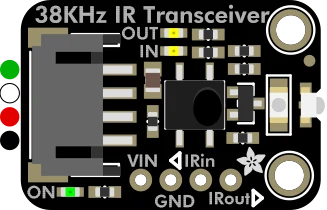

Adafruit Infrared IR Remote Transceiver - STEMMA JST PH 2mm pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VIN | power | |
| 2 | GND | ground | |
| 3 | IRIN | bidirectional | |
| 4 | IROUT | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit Infrared IR Remote Transceiver (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
| Supplier | Stock | Price | Status | |
|---|---|---|---|---|
| Mouser | 19 | $5.95 (1+) | View |
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
