ADA5778 · AdafruitActive
Adafruit product #5778. Also sold as #6475 (other header/assembly options).
| Part number | ADA5778 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › LED Matrix & Segment |
| Pins | 13 |

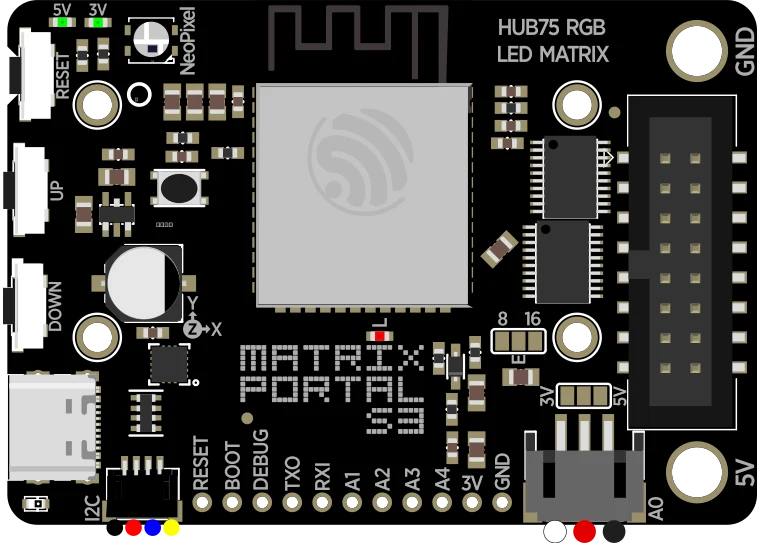

Adafruit Matrix Portal S3 CircuitPython Powered Internet Display pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | +5V | power | |
| 3 | !RESET | bidirectional | |
| 4 | BOOT0 | bidirectional | |
| 5 | TXD0 | bidirectional | |
| 6 | TXO | bidirectional | |
| 7 | RXI | bidirectional | |
| 8 | A1 | bidirectional | |
| 9 | A2 | bidirectional | |
| 10 | A3 | bidirectional | |
| 11 | A4 | bidirectional | |
| 12 | 3.3V | power | |
| 13 | GND | ground |
Schematic symbol and footprint
Footprint: Adafruit Matrix Portal S3 (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
