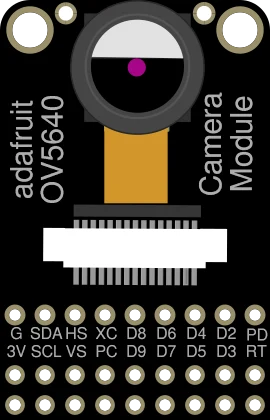

ADA5673 · Adafruit
Adafruit product #5673 — built on OV5640.
| Part number | ADA5673 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › Camera & Vision |
| Pins | 27 |
Adafruit OV5640 Camera Breakout - 120 Degree Lens pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | PWDN | bidirectional | |
| 2 | DATA2 | bidirectional | |
| 3 | DATA4 | bidirectional | |
| 4 | DATA6 | bidirectional | |
| 5 | DATA8 | bidirectional | |
| 6 | EXT_XCLK | bidirectional | |
| 7 | HSYNC | bidirectional | |
| 8 | SDA | bidirectional | |
| 9 | GND | ground | |
| 10 | PWDN | bidirectional | |
| 11 | DATA2 | bidirectional | |
| 12 | DATA4 | bidirectional | |
| 13 | DATA6 | bidirectional | |
| 14 | DATA8 | bidirectional | |
| 15 | EXT_XCLK | bidirectional | |
| 16 | HSYNC | bidirectional | |
| 17 | SDA | bidirectional | |
| 18 | GND | ground | |
| 19 | !RESET | bidirectional | |
| 20 | DATA3 | bidirectional | |
| 21 | DATA5 | bidirectional | |
| 22 | DATA7 | bidirectional | |
| 23 | DATA9 | bidirectional | |
| 24 | PCLK | bidirectional | |
| 25 | VSYNC | bidirectional | |
| 26 | SCL | bidirectional | |
| 27 | 3.3V | power |
Schematic symbol and footprint
Footprint: Adafruit OV5640 Camera Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
