ADA5945 · Adafruit
Adafruit product #5945.
| Part number | ADA5945 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › Camera & Vision |
| Pins | 40 |

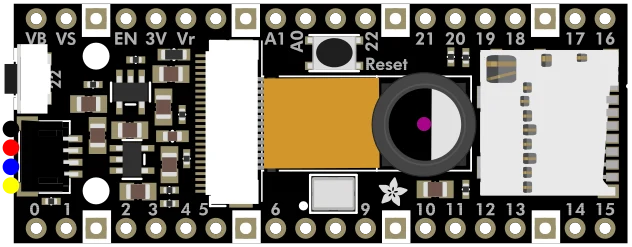

Adafruit PiCowbell Camera Breakout - Autofocus 72 Degree Lens pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VBUS | power | |
| 2 | VSYS | bidirectional | |
| 3 | GND | ground | |
| 4 | !EN | bidirectional | |
| 5 | 3.3V | power | |
| 6 | VREF | bidirectional | |
| 7 | AD2 | bidirectional | |
| 8 | GND | ground | |
| 9 | AD1 | bidirectional | |
| 10 | AD0 | bidirectional | |
| 11 | !RESET | bidirectional | |
| 12 | SHUTTER | bidirectional | |
| 13 | GND | ground | |
| 14 | IO21 | bidirectional | |
| 15 | IO20 | bidirectional | |
| 16 | MOSI | bidirectional | |
| 17 | SCK | bidirectional | |
| 18 | GND | ground | |
| 19 | CARD_CS | bidirectional | |
| 20 | MISO | bidirectional | |
| 21 | VSYNC | bidirectional | |
| 22 | PWDN | bidirectional | |
| 23 | GND | ground | |
| 24 | HSYNC | bidirectional | |
| 25 | PCLK | bidirectional | |
| 26 | SDA | bidirectional | |
| 27 | SCL | bidirectional | |
| 28 | GND | ground | |
| 29 | DATA2 | bidirectional | |
| 30 | DATA3 | bidirectional | |
| 31 | DATA4 | bidirectional | |
| 32 | DATA5 | bidirectional | |
| 33 | GND | ground | |
| 34 | DATA6 | bidirectional | |
| 35 | DATA7 | bidirectional | |
| 36 | DATA8 | bidirectional | |
| 37 | DATA9 | bidirectional | |
| 38 | GND | ground | |
| 39 | CAM_RST | bidirectional | |
| 40 | 20 | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit PiCowbell Camera Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
