ADA3070 · AdafruitActive
Adafruit product #3070 — built on RFM69HCW.
| Part number | ADA3070 |
|---|---|
| Manufacturer | Adafruit |
| Category | Communication & Wireless › Sub-GHz & RF Transceivers |
| Pins | 15 |
| Frequency | 915 MHz |
Adafruit RFM69HCW Transceiver Radio Breakout - 868 or 915 MHz pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | DIO1 | bidirectional | |
| 2 | DIO2 | bidirectional | |
| 3 | DIO3 | bidirectional | |
| 4 | DIO4 | bidirectional | |
| 5 | DIO5 | bidirectional | |
| 6 | ANTENNA | bidirectional | |
| 7 | VIN | power | |
| 8 | GND | ground | |
| 9 | EN | bidirectional | |
| 10 | DIO0 | bidirectional | |
| 11 | SCK | bidirectional | |
| 12 | MISO | bidirectional | |
| 13 | MOSI | bidirectional | |
| 14 | CS | bidirectional | |
| 15 | RST | bidirectional |
Schematic symbol and footprint

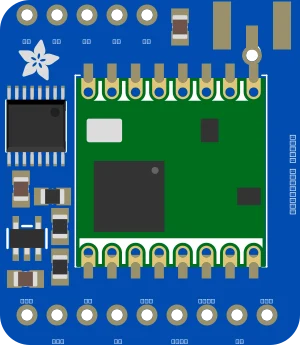

Footprint: Adafruit RFM69HCW Transceiver Radio (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
