Adafruit Small 1.2" 8x8 LED Matrix w/I2C Backpack - Yellow

Parts › Displays & LEDs › LED Matrix & Segment

ADA1050 · Adafruit

Adafruit Small 1.2" 8x8 LED Matrix w/I2C Backpack - Yellow photo

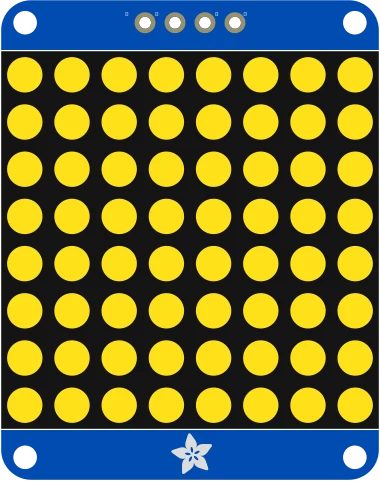

Adafruit Small 1.2" 8x8 LED Matrix w/I2C Backpack - Yellow illustration

Adafruit product #1050. Interfaces: I2C.

Part numberADA1050
ManufacturerAdafruit
CategoryDisplays & LEDs › LED Matrix & Segment
Pins4

Adafruit Small 1.2" 8x8 LED Matrix w/I2C Backpack - Yellow pinout

PinNameTypeDescription
1SCLbidirectional
2SDAbidirectional
3GNDground
4VDDpower

Schematic symbol and footprint

1234
Footprint: 1.2 Inch 8x8 LED Matrix Backpack (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
