ADA6420 · Adafruit
Adafruit product #6420 — built on SPA06-003.
| Part number | ADA6420 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › Pressure |
| Pins | 7 |

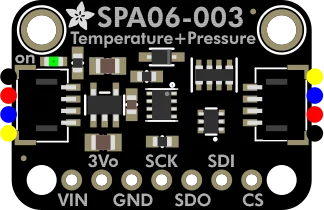

Adafruit SPA06-003 Temperature + Pressure Sensor pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VCC | power | |
| 2 | 3.3V | power | |
| 3 | GND | ground | |
| 4 | SCK/SCL | bidirectional | |
| 5 | SDO/ADR | bidirectional | |
| 6 | SDI/SDA | bidirectional | |
| 7 | CS | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit SPA06-003 Temperature + Pressure Sensor (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
