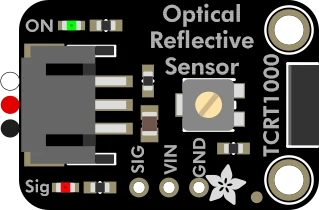

ADA5913 · AdafruitActive
Adafruit product #5913 — built on TCRT1000.
| Part number | ADA5913 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › Light & Colour |
| Pins | 6 |
Adafruit STEMMA Reflective Photo Interrupt Sensor - TCRT1000 pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | SIGNAL | bidirectional | |
| 2 | VIN | power | |
| 3 | GND | ground | |
| 4 | SIGNAL | bidirectional | |
| 5 | VIN | power | |
| 6 | GND | ground |
Schematic symbol and footprint
Schematic symbol
Footprint: Adafruit STEMMA Reflective Photo Interrupt Sensor (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
