Name: Adafruit Stereo I2S 3W Amplifier Breakout - Dual MAX98357A
Brand: Adafruit

Parts › Audio › Amplifiers & Audio Modules

ADA6513 · Adafruit

Adafruit Stereo I2S 3W Amplifier Breakout - Dual MAX98357A photo

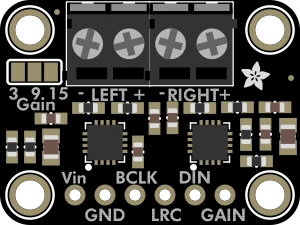

Adafruit Stereo I2S 3W Amplifier Breakout - Dual MAX98357A illustration

Adafruit product #6513 — built on MAX98357A. Interfaces: I2S.

Part number	ADA6513
Manufacturer	Adafruit
Category	Audio › Amplifiers & Audio Modules
Pins	10
Power	3 W

Adafruit Stereo I2S 3W Amplifier Breakout - Dual MAX98357A pinout

Pin	Name	Type
1	LO-	bidirectional
2	LO+	bidirectional
3	RO-	bidirectional
4	RO+	bidirectional
5	VDD	power
6	GND	ground
7	BCLK	bidirectional
8	LRCLK	bidirectional
9	DIN	bidirectional
10	GAIN	bidirectional

Schematic symbol and footprint

Schematic symbol

Footprint: Adafruit Stereo I2S 3W Amplifier Breakout - Dual MAX98357A (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
