Adafruit Triple LED Matrix Bonnet for Raspberry Pi - For HUB75

Parts › Displays & LEDs › LED Matrix & Segment

ADA6358 · AdafruitActive

Adafruit Triple LED Matrix Bonnet for Raspberry Pi - For HUB75 photo

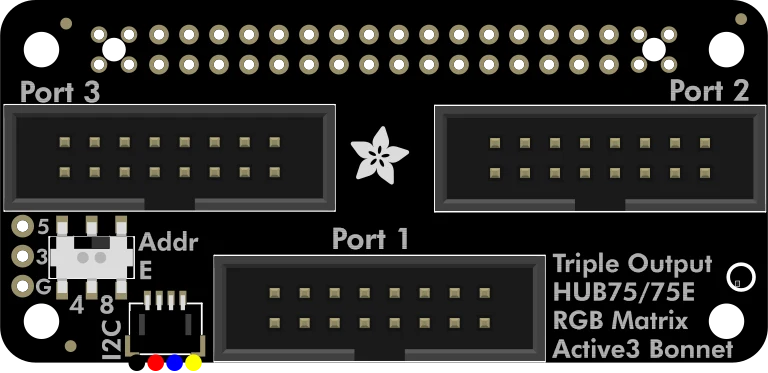

Adafruit Triple LED Matrix Bonnet for Raspberry Pi - For HUB75 illustration

Adafruit product #6358 — built on HUB75.

Part numberADA6358
ManufacturerAdafruit
CategoryDisplays & LEDs › LED Matrix & Segment
Pins91

Adafruit Triple LED Matrix Bonnet for Raspberry Pi - For HUB75 pinout

PinNameTypeDescription
1+5Vpower
2+5Vpower
3GNDground
4TXDbidirectional
5RXDbidirectional
6GPIO18bidirectional
7GNDground
8GPIO23bidirectional
9GPIO24bidirectional
10GNDground
11GPIO25bidirectional
12SPI_CE0bidirectional
13SPI_CE1bidirectional
14EECLKbidirectional
15GNDground
16GPIO12bidirectional
17GNDground
18GPIO16bidirectional
19GPIO20bidirectional
20GPIO21bidirectional
213.3Vpower
22SDAbidirectional
23SCLbidirectional
24GPIO4bidirectional
25GNDground
26GPIO17bidirectional
27GPIO27bidirectional
28GPIO22bidirectional
293.3Vpower
30SPI_MOSIbidirectional
31SPI_MISObidirectional
32SPI_SCLKbidirectional
33GNDground
34EEDATAbidirectional
35GPIO5bidirectional
36GPIO6bidirectional
37GPIO13bidirectional
38GPIO19bidirectional
39GPIO26bidirectional
40GNDground
41M3_G1bidirectional
42ADDR_E_4bidirectional
43M3_G2bidirectional
44ADDR_E_8bidirectional
45ADDR_Bbidirectional
46ADDR_Dbidirectional
47LATbidirectional
48GNDground
49M2_G1bidirectional
50ADDR_E_4bidirectional
51M2_G2bidirectional
52ADDR_E_8bidirectional
53ADDR_Bbidirectional
54ADDR_Dbidirectional
55LATbidirectional
56GNDground
57M3_R1bidirectional
58M3_B1bidirectional
59M3_R2bidirectional
60M3_B2bidirectional
61ADDR_Abidirectional
62ADDR_Cbidirectional
63CLKbidirectional
64OEbidirectional
65M2_R1bidirectional
66M2_B1bidirectional
67M2_R2bidirectional
68M2_B2bidirectional
69ADDR_Abidirectional
70ADDR_Cbidirectional
71CLKbidirectional
72OEbidirectional
73+5Vpower
743.3Vpower
75GNDground
76M1_G1bidirectional
77ADDR_E_4bidirectional
78M1_G2bidirectional
79ADDR_E_8bidirectional
80ADDR_Bbidirectional
81ADDR_Dbidirectional
82LATbidirectional
83GNDground
84M1_R1bidirectional
85M1_B1bidirectional
86M1_R2bidirectional
87M1_B2bidirectional
88ADDR_Abidirectional
89ADDR_Cbidirectional
90CLKbidirectional
91OEbidirectional

Schematic symbol and footprint

12345678910111213141516171819202122232425262728293031323334353637383940414243444546474849505152535455565758596061626364656667686970717273747576777879808182838485868788899091
Footprint: Adafruit Triple LED Matrix Bonnet (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.

Where to buy

SupplierStockPriceStatus
Mouser0$9.95 (1+)New at MouserView
DigiKey83$9.95 (1+)ActiveView

Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
