ADA1980 · Adafruit
Adafruit product #1980 — built on TSL2591.
| Part number | ADA1980 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › Light & Colour |
| Pins | 6 |
Adafruit TSL2591 High Dynamic Range Digital Light Sensor pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VCC | power | |
| 2 | 3.3V | power | |
| 3 | GND | ground | |
| 4 | SCL | bidirectional | |
| 5 | SDA | bidirectional | |
| 6 | INT | bidirectional |
Schematic symbol and footprint

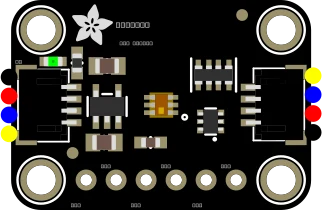

Footprint: Adafruit TSL2591 High Dynamic Range Digital Light Sensor (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
