ADA6348 · AdafruitActive
Adafruit product #6348 — built on WIZ5500.
| Part number | ADA6348 |
|---|---|
| Manufacturer | Adafruit |
| Category | Communication & Wireless › Ethernet |
| Pins | 9 |

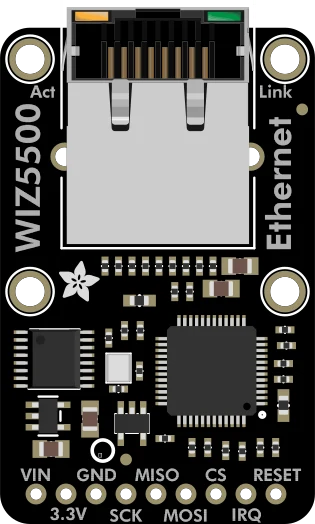

Adafruit Wiz5500 Ethernet Co-Processor Breakout Board pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VIN | power | |
| 2 | 3.3V | power | |
| 3 | GND | ground | |
| 4 | SCK | bidirectional | |
| 5 | MISO_MCU | bidirectional | |
| 6 | MOSI | bidirectional | |
| 7 | CS | bidirectional | |
| 8 | IRQ | bidirectional | |
| 9 | RST | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit Wiz5500 Ethernet Co-Processor Breakout Board (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
