Quad Alphanumeric Display - Pure Green 0.54" Digits w/ Backpack

Parts › Displays & LEDs › LED Matrix & Segment

ADA2160 · Adafruit

Quad Alphanumeric Display - Pure Green 0.54" Digits w/ Backpack photo

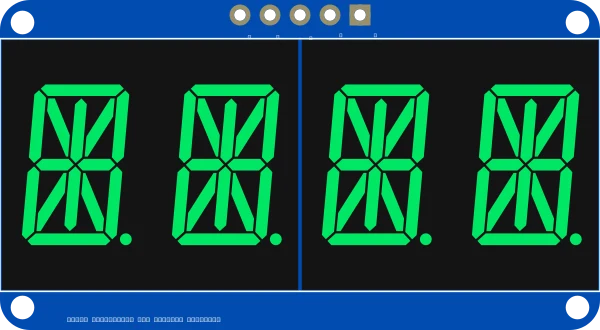

Quad Alphanumeric Display - Pure Green 0.54" Digits w/ Backpack illustration

Adafruit product #2160.

Part numberADA2160
ManufacturerAdafruit
CategoryDisplays & LEDs › LED Matrix & Segment
Pins5

Quad Alphanumeric Display - Pure Green 0.54" Digits w/ Backpack pinout

PinNameTypeDescription
1VI2Cbidirectional
2VDDpower
3GNDground
4SDAbidirectional
5SCLbidirectional

Schematic symbol and footprint

12345
Footprint: 14-segment LED Alphanumeric Backpack (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
